Spec the show network.
Ship the drawing set.

netmap turns your rack builds, IP plan, VLANs and DMX universes into a complete, print-ready drawing set — rack elevations, switch-port maps, cable schedules and universe maps. The paperwork a show package actually needs, drafted in one place.

Request beta access Take the tour

Desktop app · macOS + Windows Runs fully offline Your show data stays on your machine

Project

Lollapalooza 2026

Sheet

E-101

Rev

FOH Rack · front elevation

Master IP schedule · excerpt

Device	Address	VLAN
CORE-SW-01	10.224.0.11	MGMT
MA-NPU-01	10.224.0.24	CTRL
NODE-FOH-01	10.224.1.16	sACN

Phase 01 · Plan

Start with the scheme.

SHT E-100

Before a single device exists, the show has an addressing scheme. The title block says whose book this is; the VLAN legend says how the network thinks.

One legend rules the whole book

Every VLAN gets a number, a name, a color, a subnet scheme and an IP start. That row travels everywhere — grid cells, port maps, coding rings, labels, prints.

Renumber freely

Change a VLAN's id or name and every device, switch port and panel connector using it follows — in the show and in your saved library.

The per-VLAN subnet schemes set here drive the IP planner later. Design the addressing once, at your desk, before the gear ships.

Project tab with the show title block: name, client, order number, dates, designer — Project tab — the title block

VLANs tab: the color legend with per-VLAN subnet and IP start schemes — VLANs tab — the legend

Phase 02 · Build

Model the rig once.

SHT E-200

One row per piece of gear — typed in, pasted from a spreadsheet, or pulled from the library you have been building since the last tour.

The next show starts where the last one ended

A reusable gear library, saved panels, and touring containers that come back with their gear and switch-port assignments in one click.

Community equipment library

Real-world gear added by netmap users — port layouts, RU, power, faceplates — human-reviewed before it ships. Included with Pro.

The rack draws itself

Give a device a rack and an RU and the elevations exist — front, rear, and a 3D flight case you can orbit.

0devices in the Lolla rig 0racks · drawn to scale

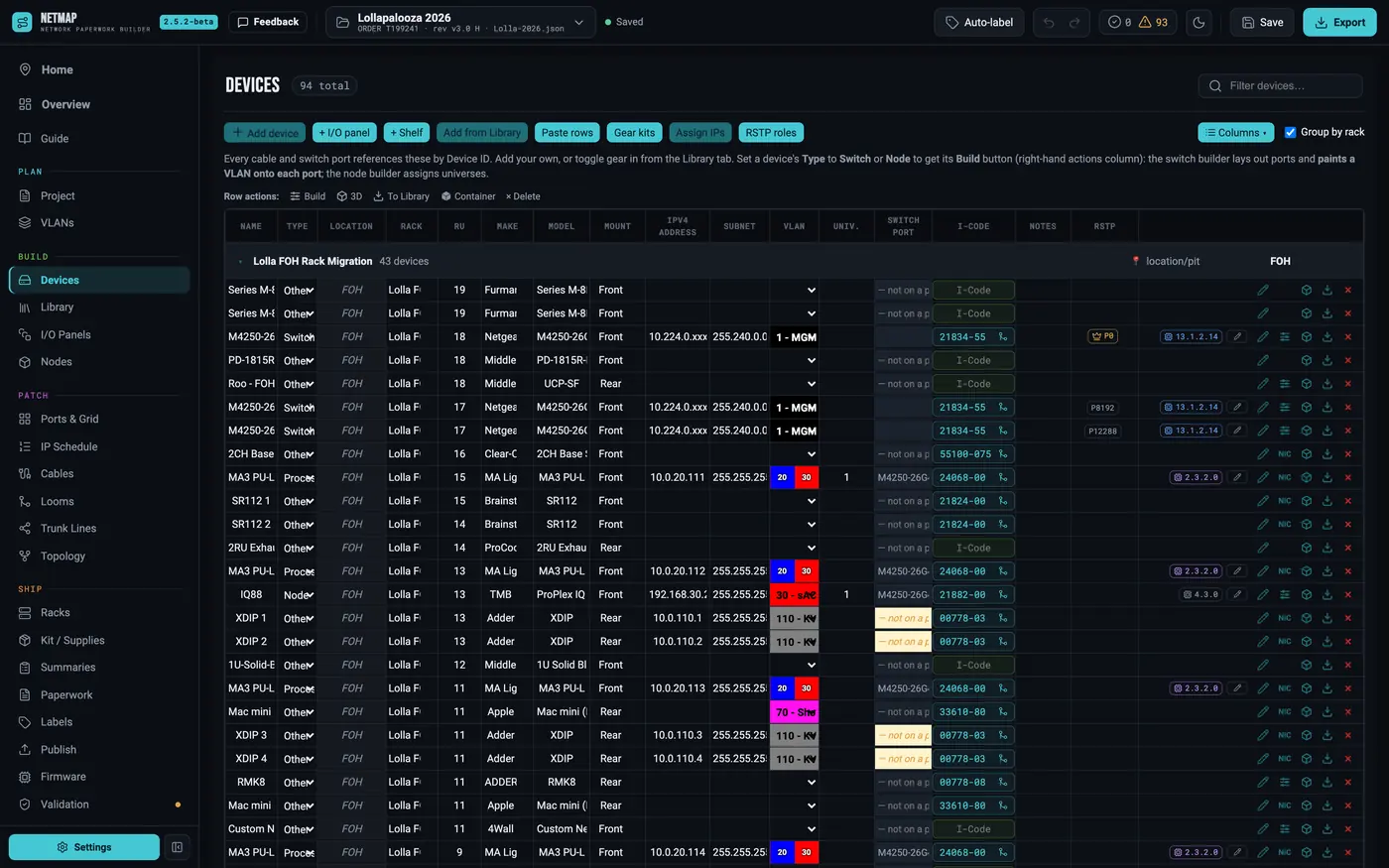

Devices tab listing the Lollapalooza 2026 rig with VLAN color cells, grouped by rack — Devices tab — the master list

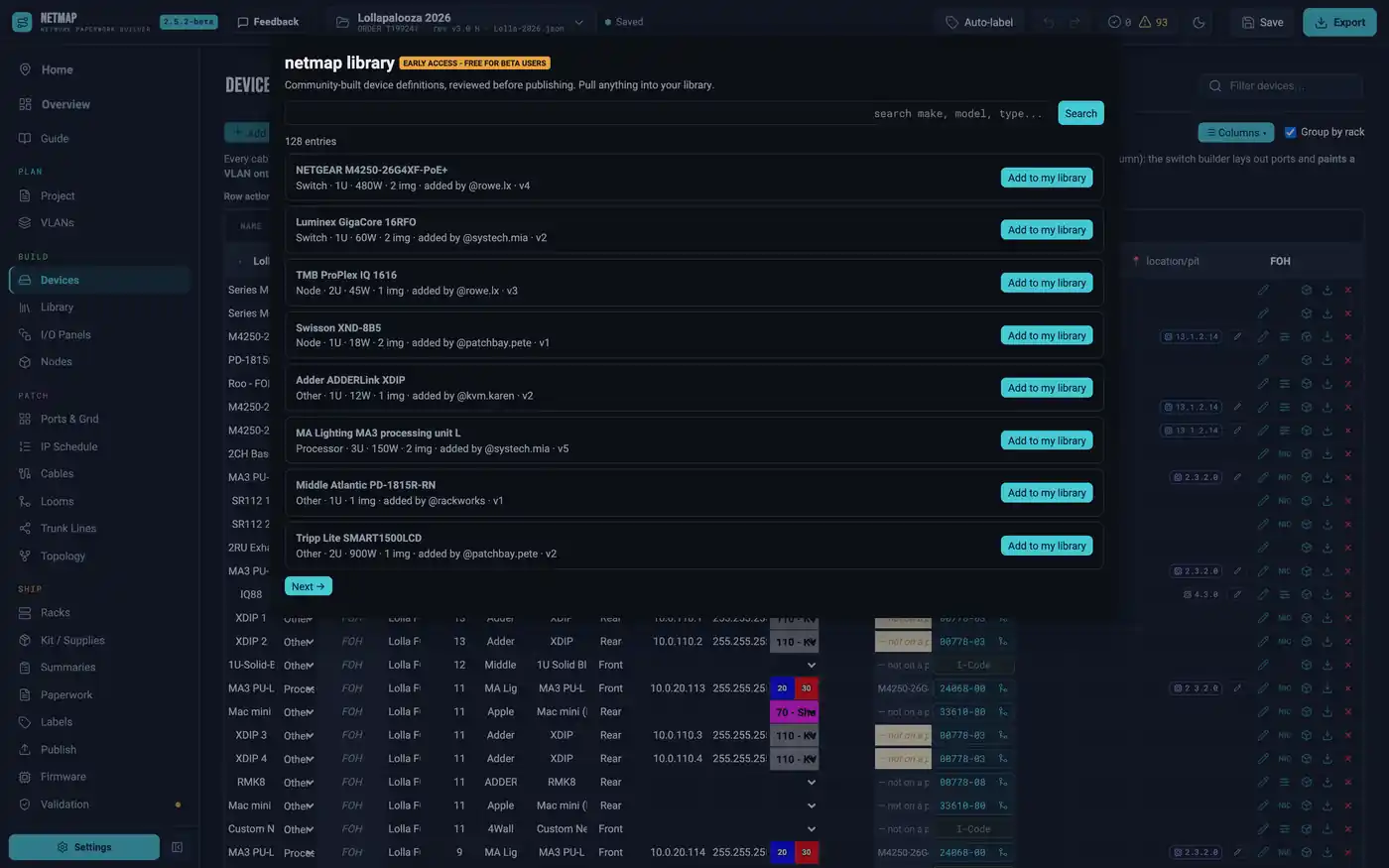

Community equipment library modal with search results and credit lines — Add from netmap library

3D rack render orbited to a three-quarter angle with faceplates on — Racks tab — 3D elevation

Phase 03 · Patch

Patch it before the truck.

SHT E-300

The deepest phase — and the one the site can't fake. Four screens, one rule: nothing is typed twice, and validation runs live the whole way down.

STEP 01 · 04

Ports & Grid

Paint VLANs onto the switch face. The whole architecture at a glance, in faceplate order — copy a plan, stamp it onto the next switch.

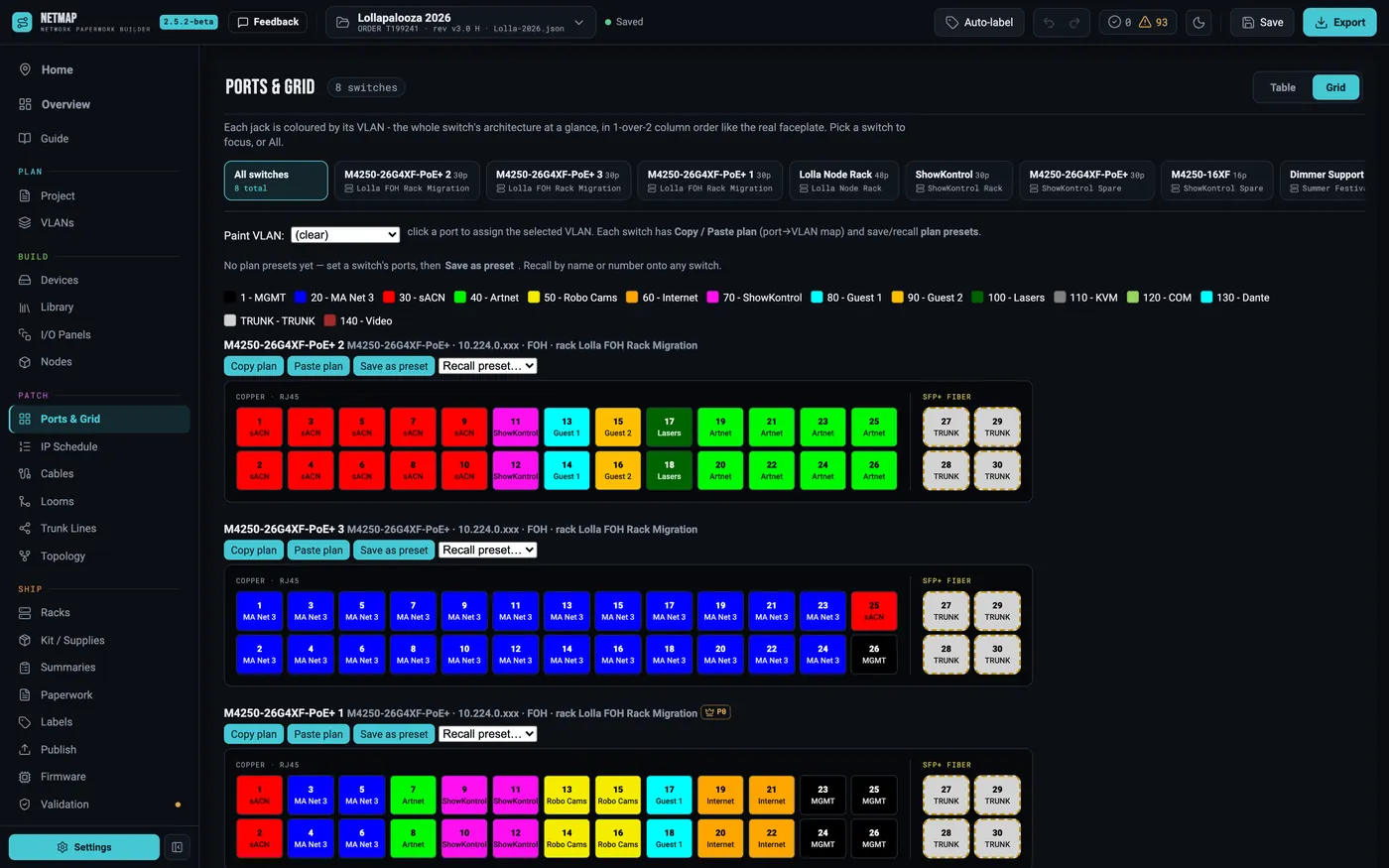

Switch grid with VLAN colors painted onto ports and a trunk port visible — Ports & Grid — paint VLANs

STEP 02 · 04

Master IP Schedule

Every device, every NIC, live and editable. Consoles side by side, nodes with their universes, duplicates boxed in red on the spot.

IP Schedule tab with grouped device sections, addresses and VLAN chips — Master IP Schedule

STEP 03 · 04

MVR import

Pull the plot straight from Vectorworks. See the whole rig in 3D, fixtures colored by universe, with patch conflicts flagged while the fix is still free.

MVR / Patch tab with the 3D fixture plot on: the imported rig orbited in 3D, fixtures colored by universe — MVR import — 3D fixture plot

STEP 04 · 04

Looms

Spec a loom once — identity color, tape marker, member legs. Stamp both ends and every leg lands in the cable schedule.

Validation runs live the whole time — duplicate IPs, a port used twice, a VLAN missing from the legend. The mistake gets caught at your desk, not at the dimmer beach.

Phase 04 · Ship

One click. The whole book.

SHT E-400

The gate first: a green board. Errors block a clean export; warnings don't lie about themselves.

Then the export — a branded drawing set with title blocks, a drawing register and revisions. Portrait, landscape 17×11, or ganged four-up onto Arch D for the plotter. PDF and Excel, every time.

0sheets in the Lolla book 2formats · pdf + xlsx

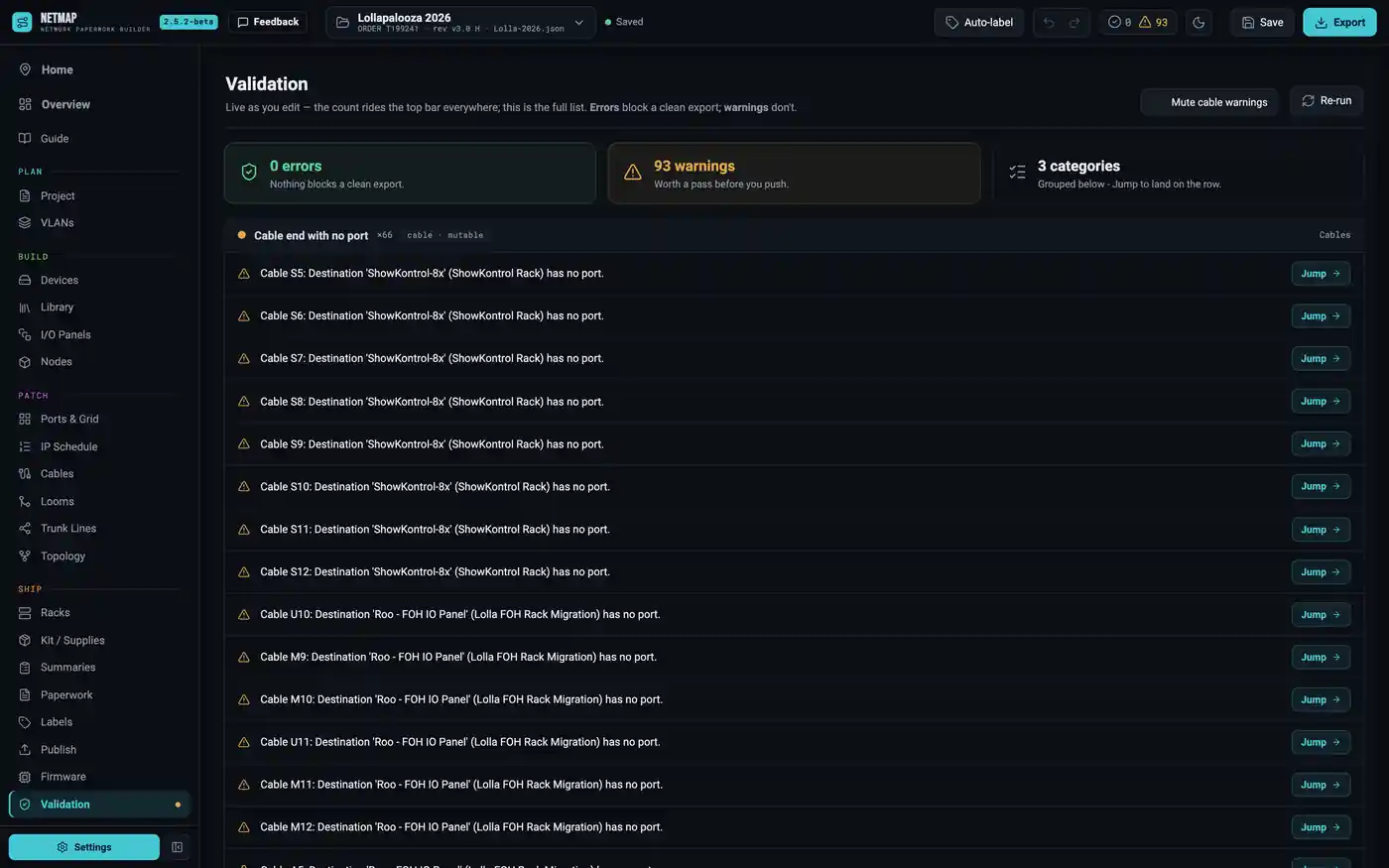

Validation tab with zero errors blocking export and the grouped warning list — Validation — zero errors

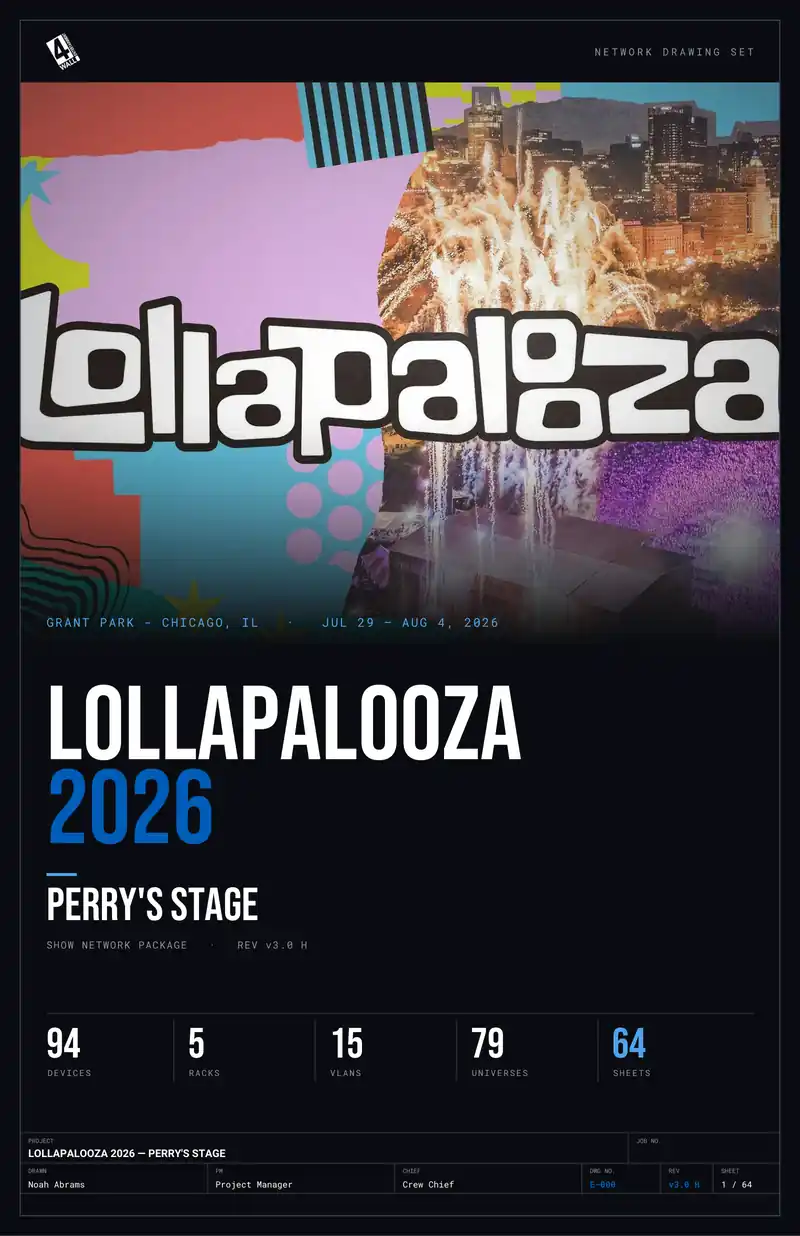

Exported drawing-set cover page E-000 with the show title block

CoverE-000

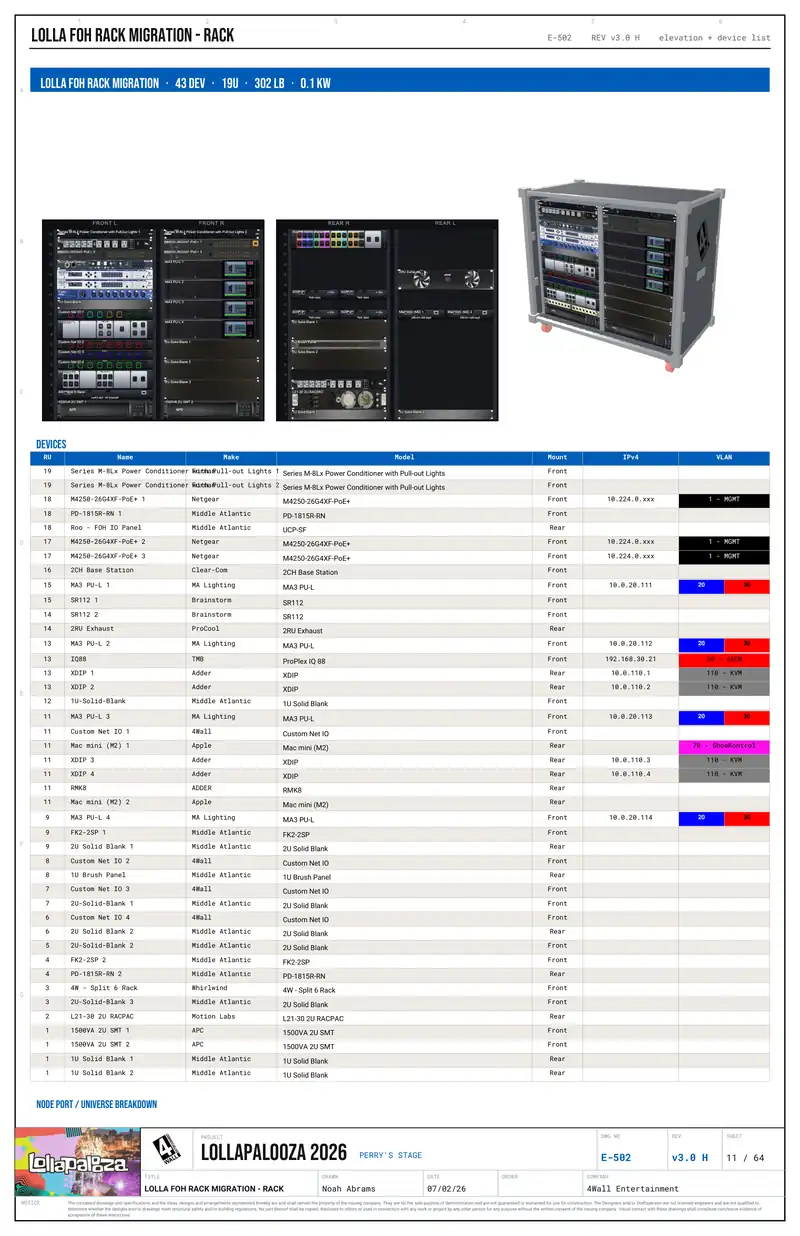

Exported rack elevation page: front and rear, to scale, with title block

Rack elevationE-502

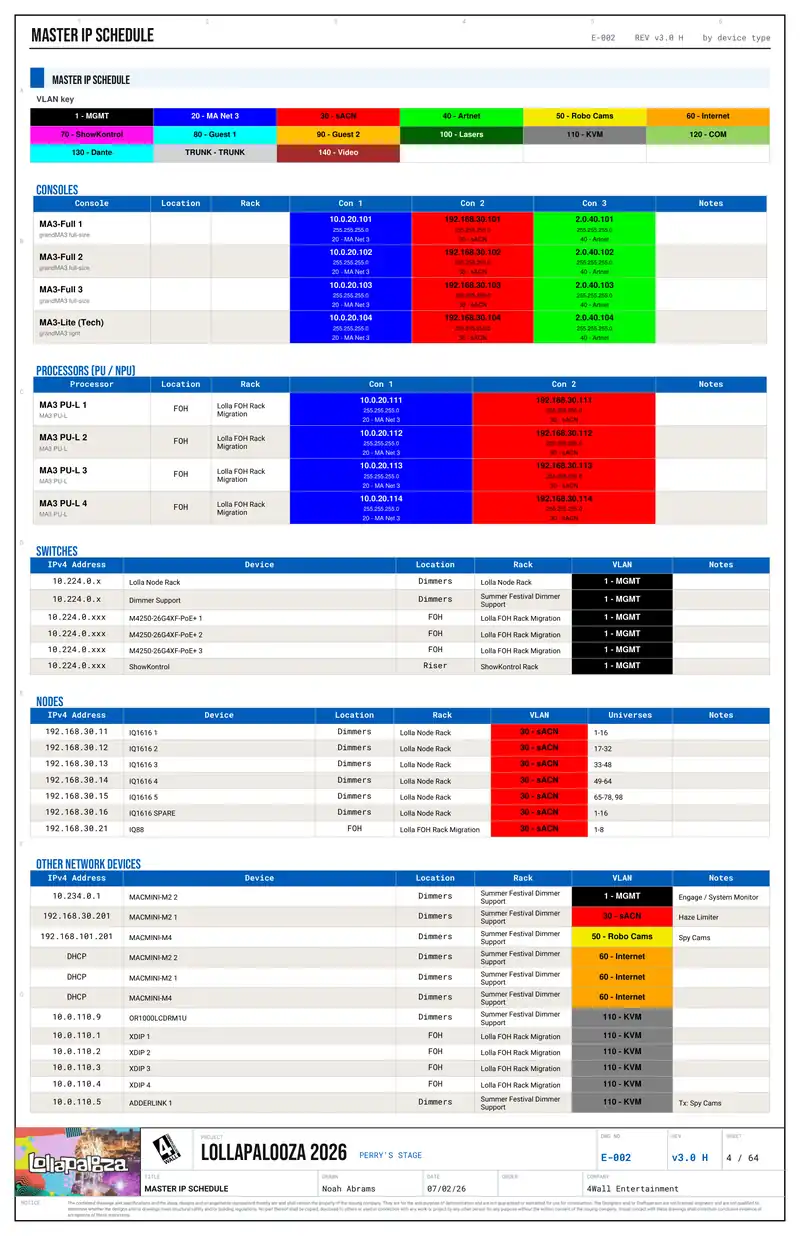

Exported Master IP Schedule page, every NIC sorted and VLAN-aware

Master IP scheduleE-002

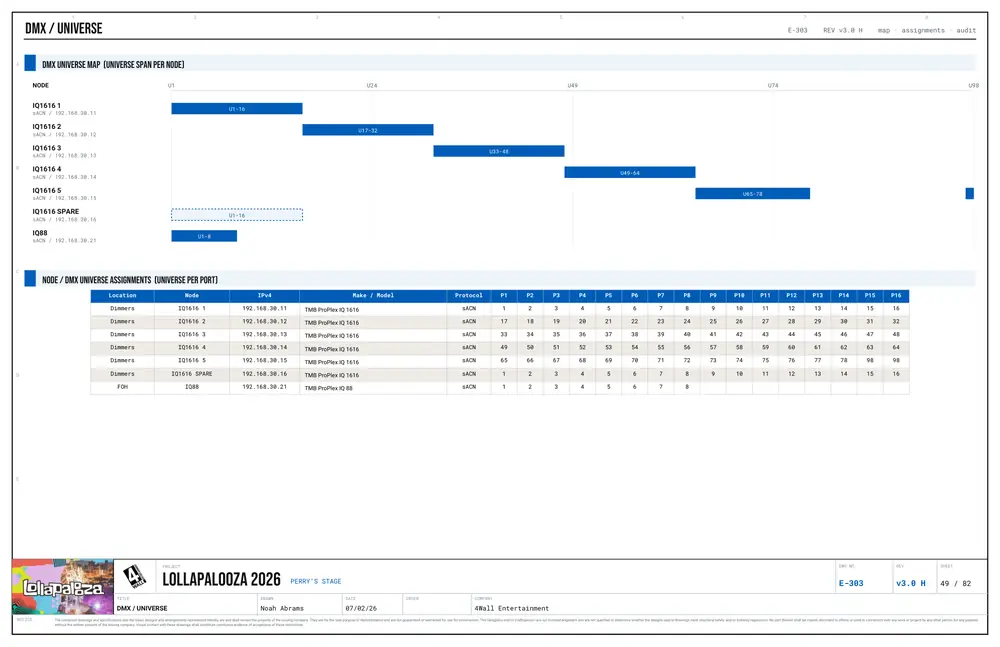

Exported DMX universe map page with node assignments

Universe mapE-303

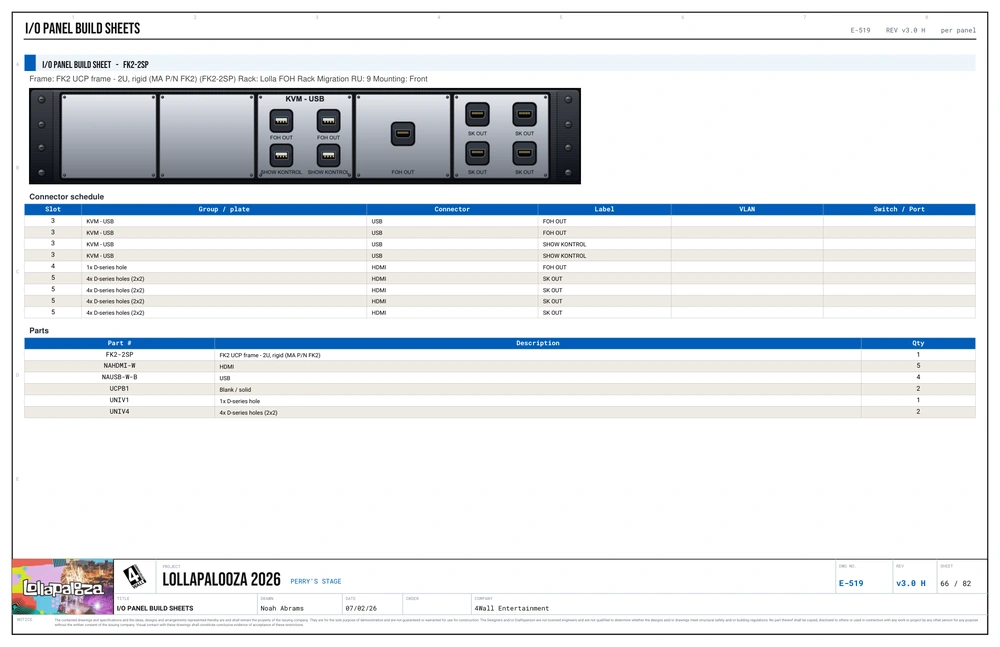

Exported I/O panel build sheet: the panel faceplate with per-panel connector schedule and parts list

I/O panel build sheetE-519

Labels ride along

Cable, device, rack and loom labels on die-cut stock — Avery 5520 and the OnlineLabels catalog, VLAN color bars included. Your printer lies; netmap measures it with a calibration test page and saves the profile per printer.

Project

Lollapalooza 2026

Sheet

E-650

Rev

Labels — calibrated sheets

Phase 05 · Publish

The book goes where the crew is.

SHT E-500

Studio publishes a read-only copy of the paperwork to netmap.show/publish/you/show. The crew opens it on their phones — searchable IP schedule, cable schedule, port maps, and the 3D rack orbit. No app install.

You stay in control

Optional PIN. Links live 14 days and extend from the app. View counts show who actually opened the book.

Publish tab with the live slug preview, PIN, expiry countdown and publishes list — Publish tab — slug and PIN

Published show on a phone: the node universe-grid cards

Published show on a phone: the IP schedule tab of the crew page

The crew page · IP schedule and the node grid, on a phone at load-in

The output

Drawing register · one show, one book

E-101

Rack ElevationsFront & rear, 2D and 3D, with per-rack build pages your crew can pack from.

E-135

Loom Build SheetsSpec a loom once — identity color, tape marker, member legs — and every leg lands in the cable schedule.

E-201

Master IP ScheduleEvery device, every NIC — VLAN-aware, sortable by address, ready to hand to the network lead.

E-301

DMX / Universe MapNode assignments and universe colouring, with .mvr import to pull straight from the lighting plot.

E-401

Switch Ports & WiremapsPer-switch port maps, trunk lines and SFP counts — the wiring, not the guesswork.

E-402

VLAN Legend & Subnet AuditYour VLAN scheme on one sheet, with overlap and range checks that catch the mistake before load-in.

E-501

I/O Panel Build SheetsCustom faceplates and punch layouts, laid out to build against.

E-601

Cable SchedulesPull sheets with lengths, connectors and adapters — priced and prepped for the shop.

E-650

Label SheetsCable, device, rack and loom labels on die-cut stock, VLAN color bars included — calibrated to your printer.

E-000

Drawing-Set ExportTitle blocks, drawing register and revisions — one branded PDF and Excel workbook, plotter-ready.

Rate card

Launch pricing · beta rides free

Demo$0 forever

Starts as a 7-day full-feature trial, then keeps working as a free demo. Kick the tires for as long as you like.

Full editor, runs offline — 1 rack, 5 VLANs per show
3D rack views, GDTF lookup, firmware notes
Device library up to 15 items
PDF/Excel exports print with a demo watermark
Community equipment library — browse only

Pro$29/mo · $290/yr

The working designer's tier. Full drawing sets, clean exports, no caps that matter on a one-desk show.

Everything in Demo, uncapped — 10 racks per show, unlimited VLANs, shows and library
QA & audit tools — IP + subnet audit, DMX audit, bulk renumber, MA budget
Community equipment library — add real-world gear straight into your shows Added by netmap users, human-reviewed before it ships.
Clean, unwatermarked drawing sets — PDF + Excel
1 seat (one activated machine)

Studio$99/mo · $990/yr

For shops and shows with crew. Every add-on included, and your paperwork goes wherever the crew is.

Everything in Pro — unlimited racks, 4 seats
Publish to web — share read-only show paperwork at netmap.show/publish/your-handle/your-show. Crew opens it on their phones; 3D rack + fixture-plot orbit included. Optional PIN. Links live 14 days, extendable from the app.
All add-ons free — MVR, Labels, Switch Sync and everything after

Add-onsà la carte on any paid tier · free in Studio · annual ≈ 2 months free

$9/mo

MVR ImportPull the fixture plot straight from Vectorworks — fixtures, universes and addresses from any .mvr export.Free in Studio

$9/mo

LabelsLightwright-style label sheets: cable, device, rack, loom + node universe labels. OnlineLabels + Avery presets, printer calibration.Free in Studio

$10/mo

Switch SyncNewRead the real switch config over SNMP, diff it against the paperwork, and push the fix — per-change confirmation, dry-run first. NETGEAR M4250 first, more families to follow.Free in Studio

$19/mo

Pro Max BundleBest valueEvery add-on, one line item — MVR, Labels, Switch Sync, and the add-ons that come after them.Free in Studio

Included freeevery tier, no add-on

Free

LoomsConsole and network loom build sheets — spec a loom once, stamp it into the show's cable schedule. Free for all tiers.

Private beta runs free with full features. Pricing shown is the current plan and can change at any time, with or without notice — changes apply going forward, never to time you've already paid for. Annual is ~2 months free. Add-on prices are per user per month. Prices in USD.

Private beta · now onboarding

Get on the build.

netmap is drafting real show packages today. I'm bringing on a small group of network and systems folks for early access — full features, no watermark, and a direct line to me for what it should do next. At launch it opens with a 7-day trial.

macOS + Windows · no card required · your data stays on your machine
